The role of heat treatment on cold processing (cold rolling, cold drawing) production of seamless steel pipes

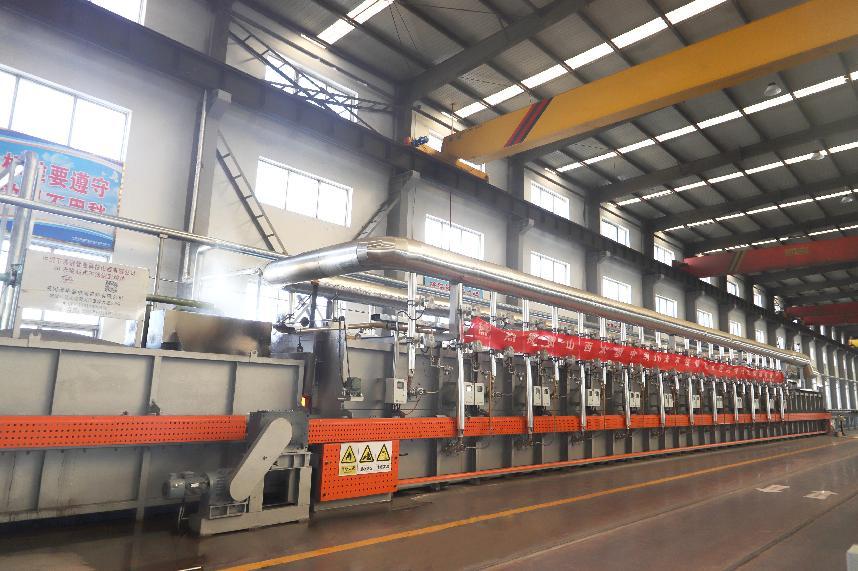

Stainless steel seamless pipes are widely used in many industrial fields, and heat treatment plays a key role in the cold processing (such as cold rolling and cold drawing) production of stainless steel seamless pipes, directly affecting processing efficiency, finished product quality and final performance. The combination of cold processing and heat treatment of seamless steel pipes can produce complementary effects in material properties, further improving the strength, toughness, wear resistance, corrosion resistance and other mechanical properties of steel pipes. This process is completed in a natural gas solid solution heat treatment furnace.

The following is the role of heat treatment in the entire process of cold processing of seamless steel pipes:

• Improve mechanical properties

1, increase intensity

Stainless steel seamless pipes can significantly increase their strength by appropriate heat treatment processes such as quenching and backtempering. During the quenching process, the stainless steel seamless pipe is quickly cooled, causing its internal structure to change, forming high-strength phases such as martensite. The formation of martensite after quenching greatly increases the yield strength and tensile strength of the pipe. The tempering process is to properly heat the quenched pipe to eliminate the internal stress generated during the quenching process, improve the toughness of the pipe, and make it more reliable in complex working environments.

2, strengthen toughness

Annealing process in heat treatment can significantly improve toughness. Annealing is the process of heating the stainless steel seamless pipe to a certain temperature and then slowly cooling it. In the stainless steel seamless pipe after cold processing, its toughness will decrease due to work hardening. After annealing, the toughness of the pipe is restored or even improved.

3. Adjust the hardness

Different application scenarios have different requirements for the hardness of stainless steel seamless pipes. In the field of mechanical processing, it is sometimes necessary that stainless steel seamless pipes have high hardness for easy cutting processing. Through the aging treatment in heat treatment, the hardness of stainless steel seamless pipes can be improved.

• Improve corrosion resistance

1, eliminate stress corrosion

Stainless steel seamless pipes will generate residual stress during manufacturing. These residual stresses work together with corrosive media, causing stress corrosion and cracking. Stress elimination annealing in heat treatment can effectively solve this problem. Stress-removing annealing is to heat the stainless steel seamless pipe to an appropriate temperature and keep it in heat for a certain period of time, and then slowly cool it down. During this process, residual stress inside the pipe is released.

2, optimize the passivation film

The corrosion resistance of stainless steel depends to a large extent on the passivation film formed on its surface. Heat treatment can affect the formation and performance of the passivation film. During high temperature heat treatment, elements on the surface of stainless steel seamless tubes will diffuse and redistribute. This change can promote the formation of a denser and more stable passivation film on the surface, further enhancing corrosion resistance.

• Improve processing performance

1, improve machinability

Stainless steel seamless pipes often require cutting to obtain the desired size and shape. However, the high toughness and high strength of stainless steel make its machinability poor. This situation can be improved by heat treatment. Through softening and annealing treatment, the hardness and strength of the stainless steel seamless pipe are reduced, making it easier to be cut by the cutting tool. This not only improves processing efficiency, but also improves processing accuracy, ensuring that the size and shape of the stainless steel seamless pipe are in compliance with the requirements after processing.

2, convenient for cold processing

Cold processing such as cold drawing and cold rolling are important processing methods in the production process of stainless steel seamless pipes. However, the process hardening of stainless steel will cause difficulties in cold processing. If the stainless steel seamless pipe is subjected to appropriate heat treatment before cold processing, such as recrystallization annealing, the impact of work hardening can be eliminated. In this way, during cold processing, the stainless steel seamless pipe can be deformed more easily, improving the efficiency and quality of cold processing.

• Improve organizational structure

1, refine grains

The grain size of stainless steel seamless tubes has an important impact on their performance. Fine grains can improve the strength, toughness and corrosion resistance of the pipe. The normalization process in heat treatment can effectively refine grains. This small grain structure makes the performance of the pipe more uniform and stable.

2, eliminate organizational defects

During the production process of stainless steel seamless pipes, some tissue defects may occur, such as strip structure, segregation, etc. Heat treatment can help eliminate these defects. This heat treatment operation to eliminate tissue defects makes the quality of stainless steel seamless pipes more reliable and can better play their role in various engineering applications.

The heat treatment of stainless steel seamless pipes plays a multi-faceted important role and is an indispensable link in the cold processing of seamless steel pipes, which directly determines the shapeability, mechanical properties and finished product quality of the product. Through reasonable heat treatment process design, processing efficiency and material performance can be balanced, and the strict requirements for seamless steel pipes in high-end fields (such as aerospace, energy equipment).
